HURST LABELSTRIPPER | Liquid Lab 88

Inventory Category

Tube Handling/Labeling

SKU

INO-250828-5237

Price

$3,250.00

Stock Level

Shipping Dims

Unpacked

Dimensions

25 × 33 × 58 in

Weight

163 lb

Exceptionally well maintained Pharma surplus.

HURST LABEL REMOVAL SYSTEMS

The HURST CORPORATION is a custom designer and builder of label removal machinery. The Hurst "Labelstripper" machine is the world standard for label removal in the pharmaceutical and diagnostics industries. The HURST LABELSTRIPPER automatically removes both label and adhesive from 600 glass bottles per hour with one operator. Glass size range: 1ml to 200ml. (250 ml Optional).

The LS200C, our seventh generation LABELSTRIPPER is a compact, vertical lathe with specially designed, non-scratching, air-cushioned blades that follow the exact contours of spinning glass bottles, removing both label and adhesive as an integral unit.

HURST LABEL REMOVAL SYSTEMS

Email us today for a quotation that meets your requirements!

DIAGRAMATIC OF STRIPPING OPERATION

CLAMP
Containers are placed in the rotation fixtures and clamped in position. Five containers are stripped during a cycle.

STRIP
As the containers spin, the air-cushioned blades move downward in a programmed motion and spirally strip off the labels.

ENGAGE
The safety shield with electrical interlock is closed. The stripper blades engage the containers and rotation is initiated.

The LABELSTRIPPER features a state-of-the-art interlock and cushioned bottle holders, providing full operator, product, and environmental safety. Dangerous soaking and hand-held razors are eliminated.

LABEL TYPES - Paper, foil and plastic film labels with pressure sensitive, gummed and thermoplastic adhesives.

CONTAINER TYPES - Round, glass containers up to a maximum of 2-1/4" diameter X 5" high.

PRODUCTION SPEED - to 600 containers per hour

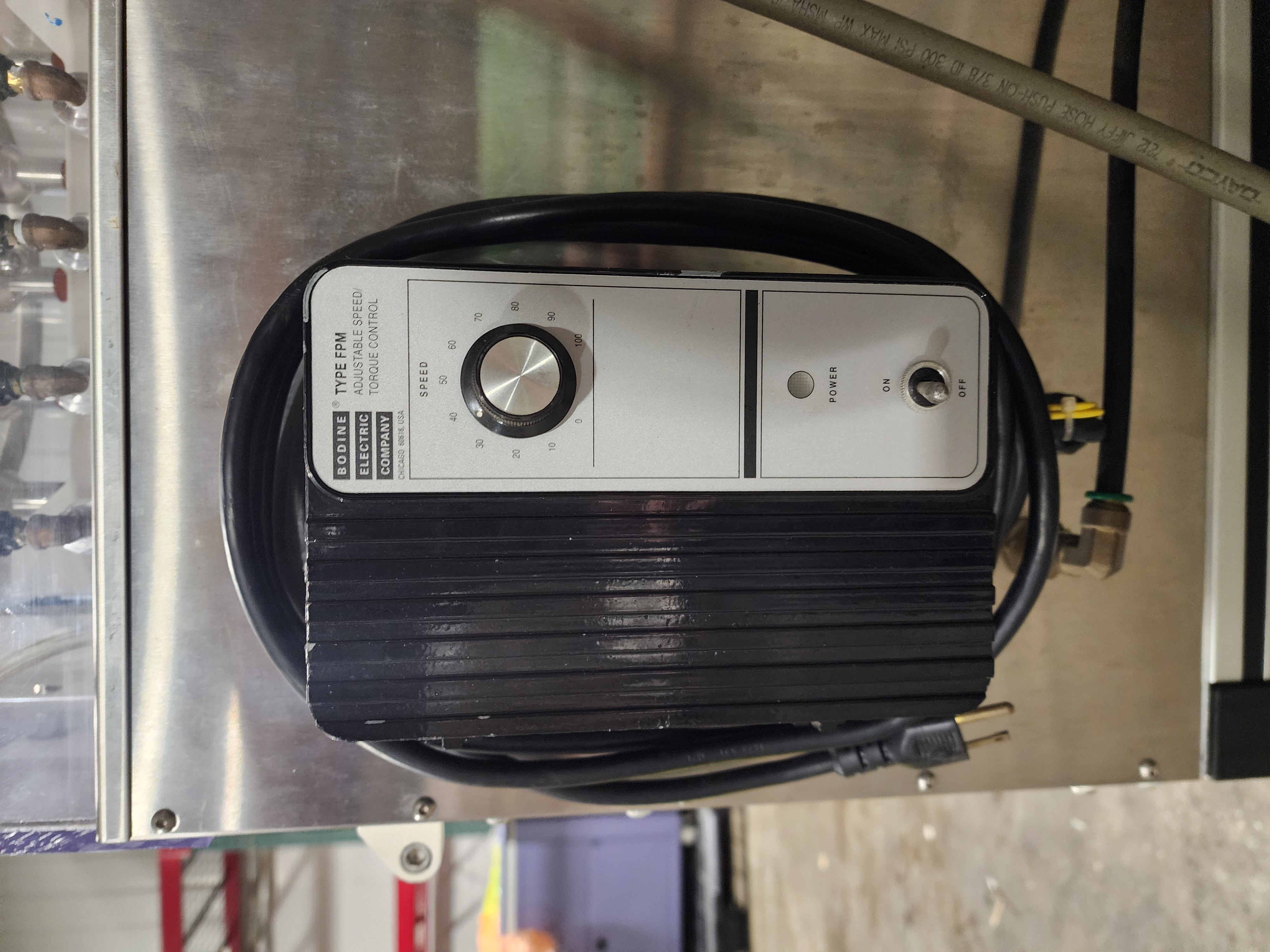

DRIVE - Timing belt drive with 1/3 horsepower variable speed DC motor.

STRIPPER BLADES - Specially designed high-speed tool steel blades. Air over oil vertical speed control. Automatic shifter distributes wear. Quick change design for fast replacement.

CLAMPING MECHANISM - Variable pressure air-operated clamp engagement. Clamping fixtures have rubber inserts to protect containers and closures.
CONSTRUCTION - Rugged 1/2" aluminum sidewalls with stainless steel panels and work surface.

WEIGHT - 300 lbs. avg.

UTILITIES - Electric - 115/230, 50/60 HZ. AIR - 60 psi at 1 CFM

HOW THIS ITEM WAS TESTED

This unit was decommissioned and acquired from a major pharma co believed fully functional and as such will be guaranteed to be without defect. We do not have the equipment to test these fully, however we put our money where our mouth is and guarantee this item as fully functional without flaws at no risk or cost to you.

NO RISK RETURN & WARRANTY

▸ 45-DAY RETURN
▸ 45-DAY WARRANTY

IMPORTANT POINTS

❗Parts or accessories not pictured should not be considered included unless stated.

DATASHEET/MANUAL

https://www.hurstcorp.com/label-removal

https://youtu.be/rwwAMX2stzU

CONDITION

This product is used and unconditionally guaranteed to meet your full satisfaction upon receipt.
